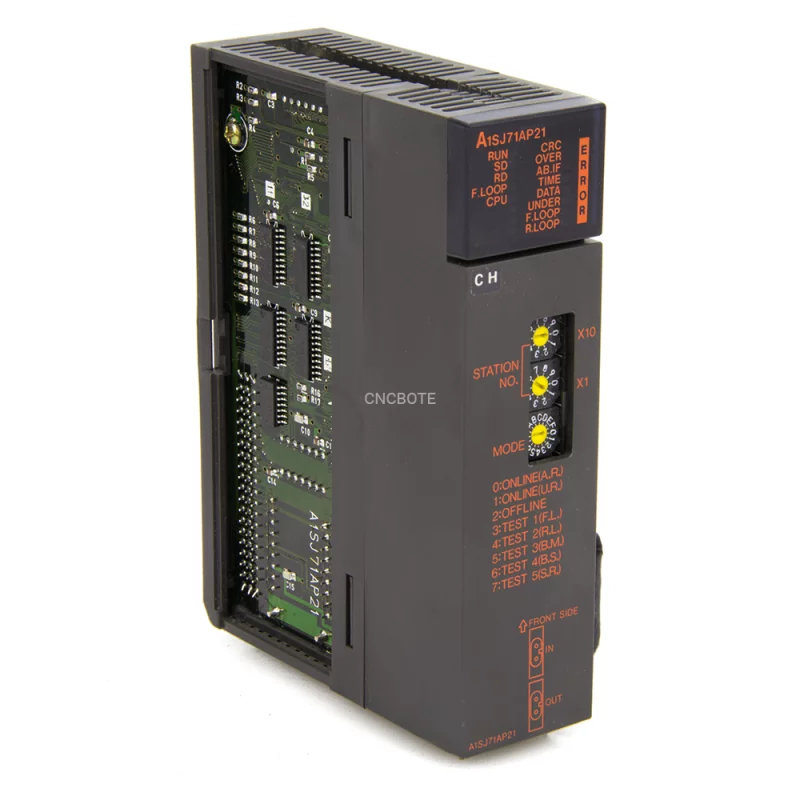

Mitsubishi A1SJ71AP21

The Mitsubishi A1SJ71AP21 is a communication adapter module that is designed to be used with Mitsubishi MELSEC-F series programmable logic controllers (PLCs). It provides a communication interface between the PLC and a personal computer or other devices via RS-232C or RS-422A/485 serial communication protocols. The A1SJ71AP21 module is compact and has a DIN rail mounting design, making it easy to install and integrate into various automation systems. It also has built-in diagnostic features, ensuring safe and reliable operation.

Featured By IATBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Features:

1. The module has 1 channel, which supports either RS-232C or RS-422A/485 serial communication.
2. It requires a power supply of 5V DC, which is supplied through the base unit of the MELSEC-F series PLC.
3. The module has a data transfer capacity of 1 kbyte/s in RS-232C mode and 10 kbytes/s in RS-422A/485 mode.
4. It supports 7 data bits, 1 stop bit, and even/odd parity in RS-232C mode, and 7 or 8 data bits, 1 or 2 stop bits, and even/odd/no parity in RS-422A/485 mode.
5. The module can be configured to operate in either synchronous or asynchronous mode.
6. It has a maximum communication distance of 500 meters in RS-422A/485 mode.
7. The module can be used for programming, monitoring, and data transfer applications, such as uploading and downloading PLC programs, monitoring system status, and transferring data to and from external devices.
8. It supports remote programming via modem, allowing for remote access to the PLC system.
9. The module has built-in diagnostic functions, such as a self-test function, communication error detection, and communication status monitoring, ensuring safe and reliable operation.
10. It is compact in size, with dimensions of 27 x 90 x 62 mm (W x H x D), and can be easily mounted on a DIN rail.
11. The module is compatible with a wide range of MELSEC-F series PLCs, including FX3G, FX3U, FX3UC, and FX3GC.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Applications:

The Mitsubishi A1SJ71AP21 module is primarily designed to be used with the Mitsubishi MELSEC A-series programmable logic controllers (PLCs). It is a serial communication interface module that allows the PLC to communicate with devices or other systems via RS-232C or RS-485/422 serial communication networks.

Some of the common applications of the A1SJ71AP21 module include:

Data acquisition and control - The A1SJ71AP21 module can be used to connect PLCs to a wide range of serial devices, such as barcode scanners, weighing scales, and temperature sensors. This enables the PLC to collect and process data from these devices and control them as necessary.

• SCADA systems - The module can be used in supervisory control and data acquisition (SCADA) systems, where it enables the PLC to communicate with remote devices over a serial network. This allows for the monitoring and control of remote equipment or processes from a central location.
• Industrial automation - The module can be used in a variety of industrial automation applications, such as manufacturing, packaging, and material handling. It can be used to control and monitor various devices and equipment, such as sensors, motors, and actuators.
• Building automation - The module can also be used in building automation systems, where it enables the PLC to communicate with various building systems, such as HVAC, lighting, and security systems. This allows for the centralized control and monitoring of these systems.
• Overall, the A1SJ71AP21 module is a versatile communication interface that can be used in a wide range of applications, where it enables the PLC to communicate with various devices and systems over serial communication networks.
