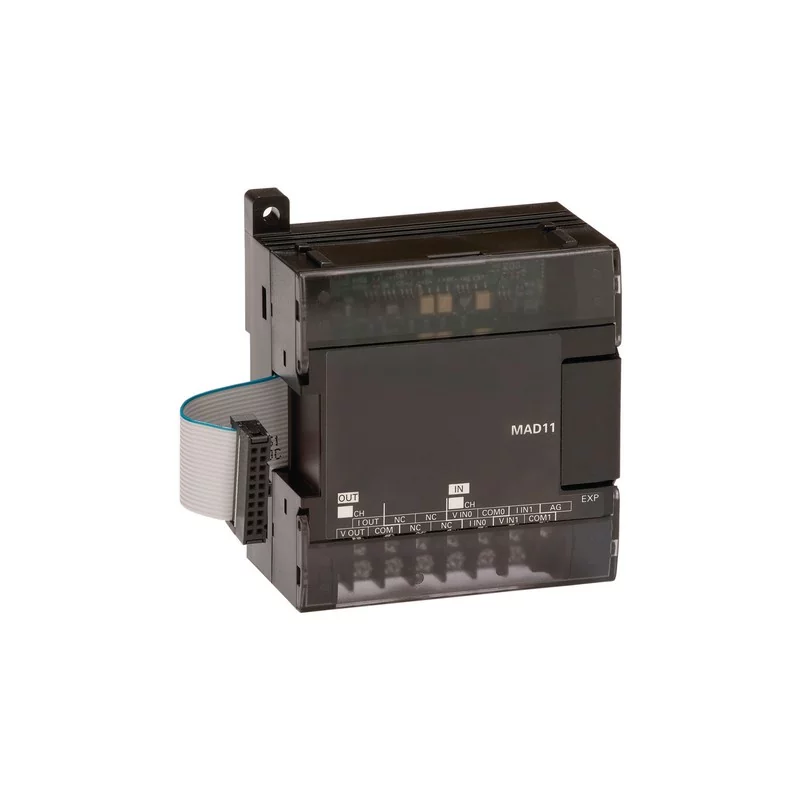

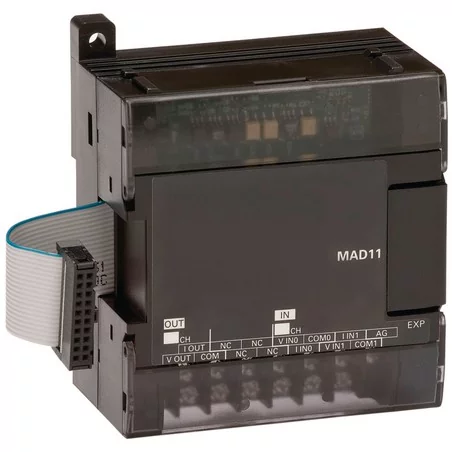

Omron CP1W-MAD11

The Omron CP1W-MAD11 is a 4-channel analog input/output module that can be used with the CP1L and CP1H series PLCs. It allows for high-precision analog control and can be easily configured and programmed through the CX-Programmer software. The CP1W-MAD11 module provides 2 analog inputs and 2 analog outputs, with a resolution of 1/6000 for voltage input and 1/4000 for current input. It also supports a variety of input/output ranges, including 0-10V, 0-5V, 1-5V, ±10V, ±5V, 0-20mA, and 4-20mA.

Featured By IATBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Features:

1. The Omron CP1W-MAD11 is a 2-channel analog input module for use with CP1-series programmable controllers.
2. The module features 12-bit resolution and can accept inputs of either voltage or current.
3. The input range for voltage is -10V to 10V, and for current is 0mA to 20mA.
4. The CP1W-MAD11 has built-in cold-junction compensation for use with thermocouple sensors.
5. The module also supports scaling and offset adjustment, allowing for more precise control of analog signals.
6. The module can be easily configured using the CX-Programmer software.
7. The CP1W-MAD11 has a compact design, requiring only 35mm of DIN rail space.
8. The module is UL recognized, CE marked, and conforms to various international standards for safety and electromagnetic compatibility (EMC).

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Applications:

The Omron CP1W-MAD11 analog input module can be used in various applications in the automation industry. Some of its applications include:

• Process control systems: The module can be used in process control systems to measure analog signals from various sensors and transducers, such as temperature sensors, pressure sensors, flow meters, and level sensors.
• Industrial automation: The module can be used in various industrial automation applications to monitor and control analog signals. For example, it can be used to control the speed of a motor based on the feedback from an analog sensor.
• Building automation: The module can be used in building automation systems to monitor and control analog signals, such as temperature, humidity, and lighting.
• Laboratory automation: The module can be used in laboratory automation systems to measure and control analog signals from various laboratory instruments, such as pH meters, spectrophotometers, and chromatographs.

Overall, the CP1W-MAD11 module is a versatile and reliable analog input module that can be used in various applications where accurate and precise measurement of analog signals is required.esh

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

1. Datasheet

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Package Includes:

1 x Siemens 6ES5 430-7LA12
