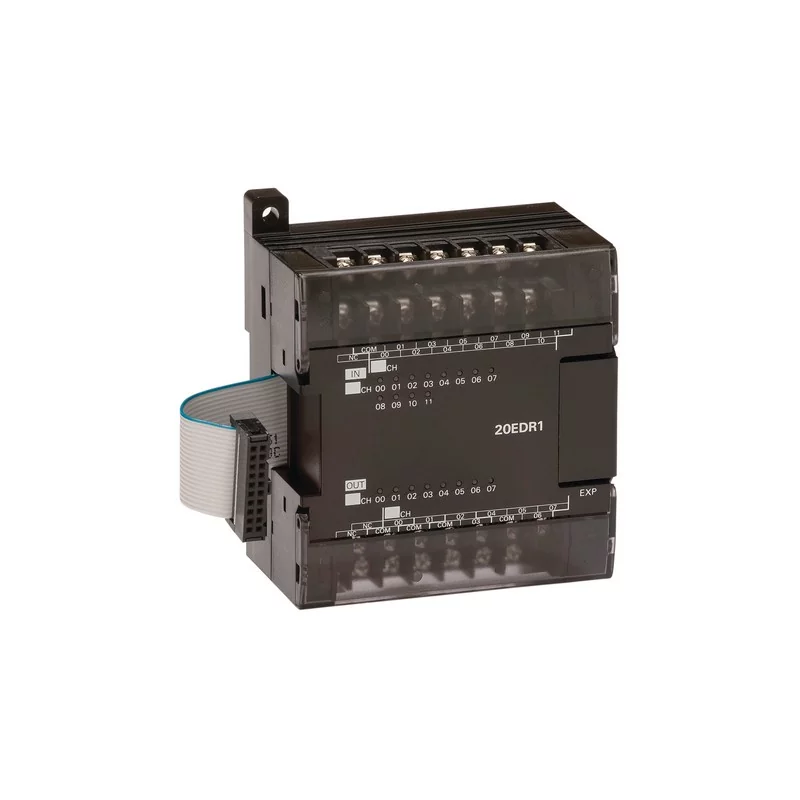

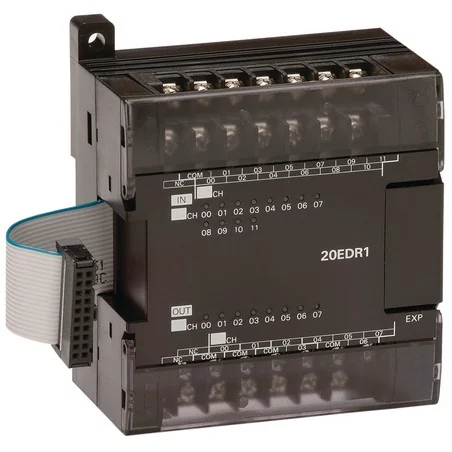

Omron CP1W-20EDR1

The Omron CP1W-20EDR1 is a digital output module designed for use with Omron's CP1 series programmable logic controllers (PLCs). It provides 20 relay outputs, each capable of switching up to 250V AC or 30V DC at 2A. The module is compact and easy to install, and can be used in a wide range of industrial automation applications to control various devices such as motors, solenoids, and valves. The CP1W-20EDR1 can be programmed using ladder logic or other programming languages supported by the CP1 series PLCs, making it a versatile and flexible solution for digital output control.

Featured By IATBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Features:

1. 20 digital inputs: The module has 20 inputs that can be used to monitor the state of digital sensors or switches. The inputs can be used with both NPN and PNP sensors.
2. 20 digital outputs: The module also has 20 outputs that can be used to control the state of digital actuators or devices. The outputs can be used with both NPN and PNP devices.
3. High-speed inputs: The module has four high-speed inputs that can be used to monitor fast signals such as pulse signals from encoders.
4. Response time: The response time for the inputs is 15ms and for the outputs is 1ms.
5. LED indicators: The module has LED indicators that provide status information about the inputs and outputs.
6. Removable terminal block: The module has a removable terminal block that makes it easy to install and remove the module from the PLC.
7. Compact size: The module is compact in size, which makes it easy to fit into small spaces.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Applications:

• Machine automation: The CP1W-20EDR1 can be used to monitor and control various sensors and actuators in a machine automation system, such as detecting the presence of a part, monitoring the position of a conveyor belt, or controlling the operation of a pneumatic cylinder.
• Building automation: The CP1W-20EDR1 can be used to control various systems in a building automation system, such as lighting, HVAC, and access control. For example, it can be used to turn lights on and off based on occupancy, monitor temperature and humidity levels, and control the operation of doors and locks.
• Process control: The CP1W-20EDR1 can be used in a process control system to monitor and control various inputs and outputs, such as flow meters, pressure sensors, and control valves. It can also be used to implement safety interlocks and emergency stop systems.
• Packaging and assembly: The CP1W-20EDR1 can be used in a packaging and assembly system to monitor and control various sensors and actuators, such as detecting the presence of a product, controlling the operation of a conveyor belt, or triggering the release of a pneumatic gripper.

eshIATBangladeshIATBangladesh

Documentation:

1. Datasheet

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Package Includes:

1 x Omron CP1W-20EDR1
