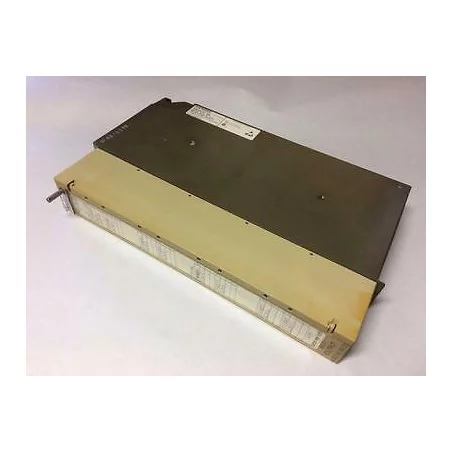

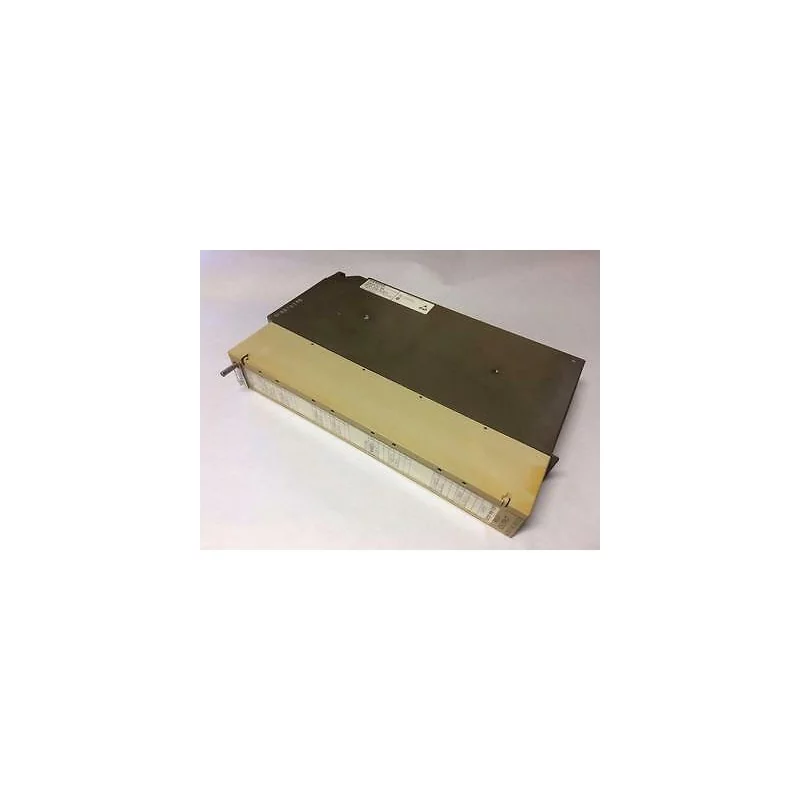

Siemens 6ES5 458-7LB11

Siemens 6ES5 458-7LB11 is a digital output module from the SIMATIC S5 series. It has 16 output channels with 24V DC output voltage and 0.5A current per channel. The module uses a relay output type and has a maximum switching frequency of 10Hz. It is designed to work with a power supply voltage range of 20-30V DC. The module can be used in a wide range of industrial automation applications, including process control, machine automation, and material handling.

Featured By IATBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Features:

1. The 6ES5 458-7LB11 is a digital input/output module with 8 inputs and 8 outputs.
2. It is designed for use with the Simatic S5-115U and S5-135U PLC systems.
3. The module has a rated voltage of 24 VDC and a current consumption of 220 mA.
4. The inputs are rated for 24 VDC and have a response time of 1.5 ms. They are compatible with both sinking and sourcing inputs.
5. The outputs are relay contacts and can switch up to 250 VAC or 30 VDC at a maximum current of 2A per channel.
6. The module is designed for use in industrial environments with a temperature range of 0 to 60°C and a relative humidity range of 5 to 95%.
7. The module can be configured and programmed using Siemens programming software such as STEP 5 or TIA Portal.
8. The 6ES5 458-7LB11 has a compact size of 145 x 40 x 117 mm and can be easily mounted on a standard DIN rail.
9. The module has LED indicators for each input and output, allowing for easy diagnostics and troubleshooting.
10. It is a legacy product and is no longer manufactured by Siemens, but may still be available in the second-hand market.

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Applications:

The Siemens 6ES5 458-7LB11 digital input/output module can be used in a wide range of industrial automation applications where digital signals need to be processed and controlled. Here are some common applications:

Process control: The module can be used to monitor and control digital signals in industrial processes such as manufacturing, chemical processing, and water treatment.

Material handling: The module can be used in conveyor systems, sorting machines, and other material handling equipment to control the movement of materials.

Packaging and labeling: The module can be used in packaging and labeling machines to control the flow of products and label information.

HVAC: The module can be used in heating, ventilation, and air conditioning systems to control fans, pumps, and other equipment.

Safety systems: The module can be used in safety systems to monitor emergency stop buttons, safety gates, and other safety devices.

Energy management: The module can be used in energy management systems to monitor and control power consumption in buildings and industrial plants.

Overall, the 6ES5 458-7LB11 module provides a versatile solution for digital signal processing and control in a variety of industrial automation applications.eshIATBangladeshIATBangladesh

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

1. Datasheet

IATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladeshIATBangladesh

Package Includes:

1 x Siemens 6ES5 458-7LB11
